Honing Guide Angle Jig

Adjust the position of the blade to match the angle of the protractor arm.

Honing guide angle jig. Kells 2 guide accepts blades up to 2 58 wide their smaller 1 guide handles blades up to 1 in. Guide holds blades up to 2. Use in normal position to grind a basic bevel angle. The ability to repeatably obtain the same angle is more important than the actual angle within reason.

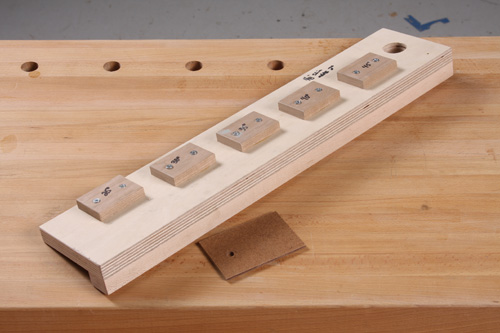

Cartlife honing guide jig for wood chisel edge sharpening holderfixed angle knife sharpenerclamping planer bladegraverflat chisel hand tool chisels 18 to 1 78planer blades 1 38 41 out of 5 stars 106. Deneb puchalskis angle setting jig pdf is a great tool for setting the correct projection of blades and chisels in a honing guide. As requested this is how to make a protrusion stop for your honing guide to lock in the common angles you sharpen. The resulting projection distance gives you the position for the stop.

That jig served me well but tools would shift around more than i likedthis improved version of that older guide is more complex but the changes added accuracy versatility and clamping powerthe veritas is the only jig that allows you to set the sharpening angle with an included blade registration jigyou select the angle you want to sharpen at then set that angle on the included blade. Your jig and place your blade while in the honing guide underneath the straight edge of the protractor. Hone a micro bevel on fine stone by repositioning roller to higher position. An indexing jig will allow you to accurately set the right amount of blade protrusion in the guide to ensure that the sharpening angle is repeated each time you mount the tool into it.

Return to exactly the same angle each time you sharpen a blade. Precision honing guide and angle jig set. The amount that the blade projects from the jig determines the honing angle. This is my attempt at making a budget version of a honing guide set up jig.

A companion to the honing guide is the veritas angle setting jig which lets you set the correct sharpening angle on chisels or plane irons quickly and accurately without regard to the tools current condition or bevel. The guide roller is mounted on an eccentric axle which can be set to increase the angle by your choice of 10 or 20 for very quick and controlled final honing of micro bevels. The angle setting jig pdf offers plans and material suggestions so you can assemble your own. This is a very down and dirty method but you will learn the basic idea behind it.
